我們公司新款產品--G型手拉葫蘆，較普通產品具有以下特點：
1.內部齒輪傳動件均采用20CrMnTi合金鋼和嚴格的滲碳熱處理工藝，相對比傳統工藝增加了齒輪的抗耐磨性。
2.配置長軸止退墊圈限位裝置，預防葫蘆鏈條下降到底部時，鏈輪和螺母鎖死，而導致的an全問題。
3.沖壓式導鏈板，使鏈條導向更順暢，防護效果好，四根支撐桿設計，運轉過程中機身更加穩定。
4.采用高 強度G80辰力專 利鏈條。
5.手罩殼采用卷邊加強筋設計，外觀精美，整體機身強度更高，增加手拉鏈運行順暢度。

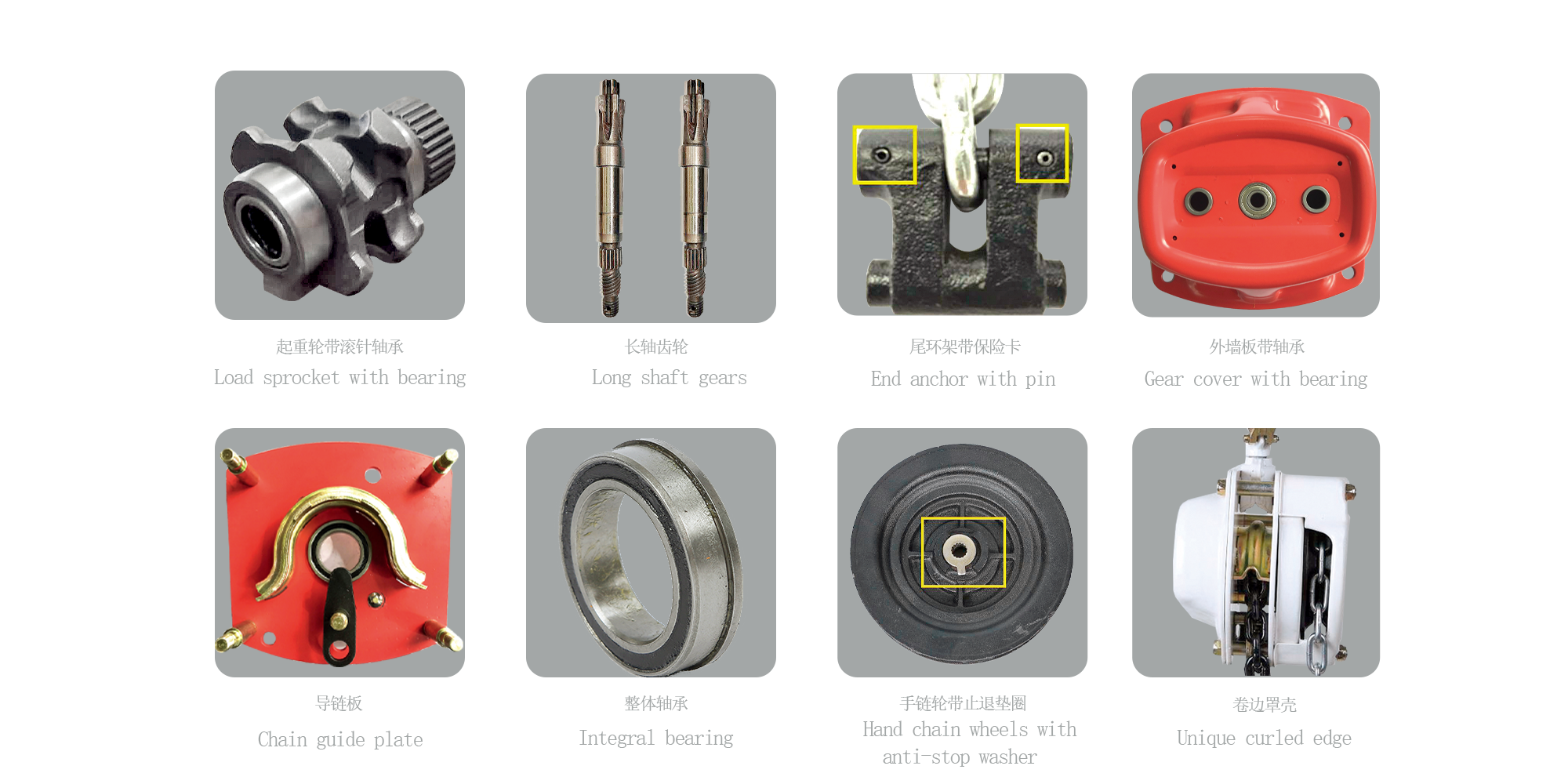

Our company’s latest products.G Series chain block. Compared with common products.they have the following characteristis.
1. The internal gear transmission parts adopt 20CrMnTi alloy steel and strict carburizing heat treatment process，which increases the wear resistance of the gear compared with the traditional process.
2. The long shaft retaining washer limit device is configured to prevent the chain wheel and nut from locking when the hoist chain falls to the bottom，resulting in safety problems.
3. Stamping chain guide plate makes the chain guide smoother and the protection effect better. Four supporting rods are designed to make the fuselage more stable during operation.
4. Use high strength T8 European standard lifting chain.
5. The hand cover is designed with curling stiffeners, which has a beautiful appearance, higher overall body strength，and increases the smoothness of hand zipper operation.
