1.用途：適用于鋼板水平吊裝。
2.采用首鋼低碳合金鋼制造或鍛造分兩種。
3.載荷范圍：0-5噸。
4.以兩只試驗為額定載荷，吊裝作業(yè)時2只或4只成組使用，鋼板較大時加平衡梁。
5.試驗載荷=額定載荷×2。
6.橫吊鋼板起重鉗嚴禁超載使用。
起重鉗|辰力吊索具
LIFTING CLAMPS|CHENLI RIGGING

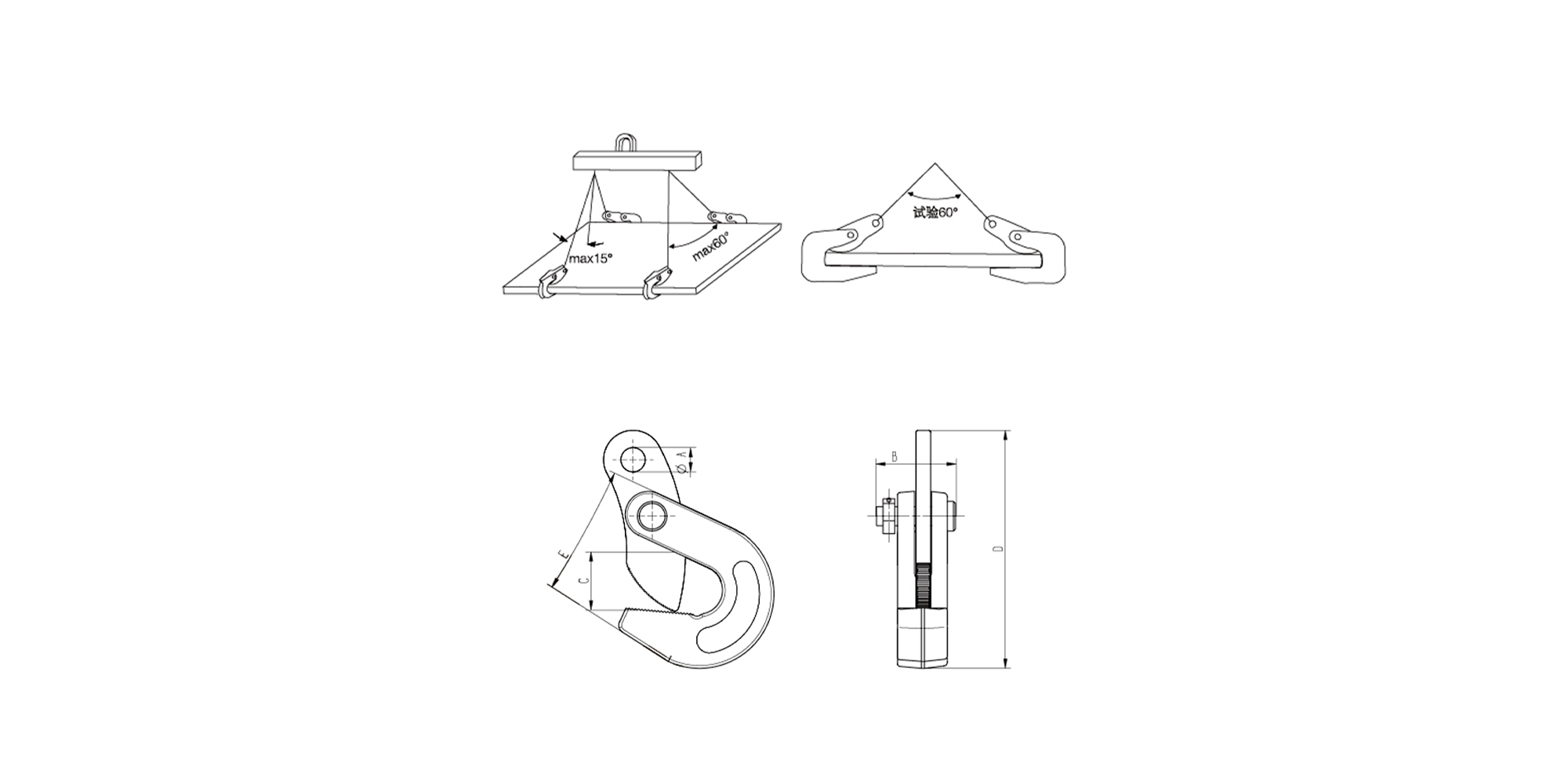

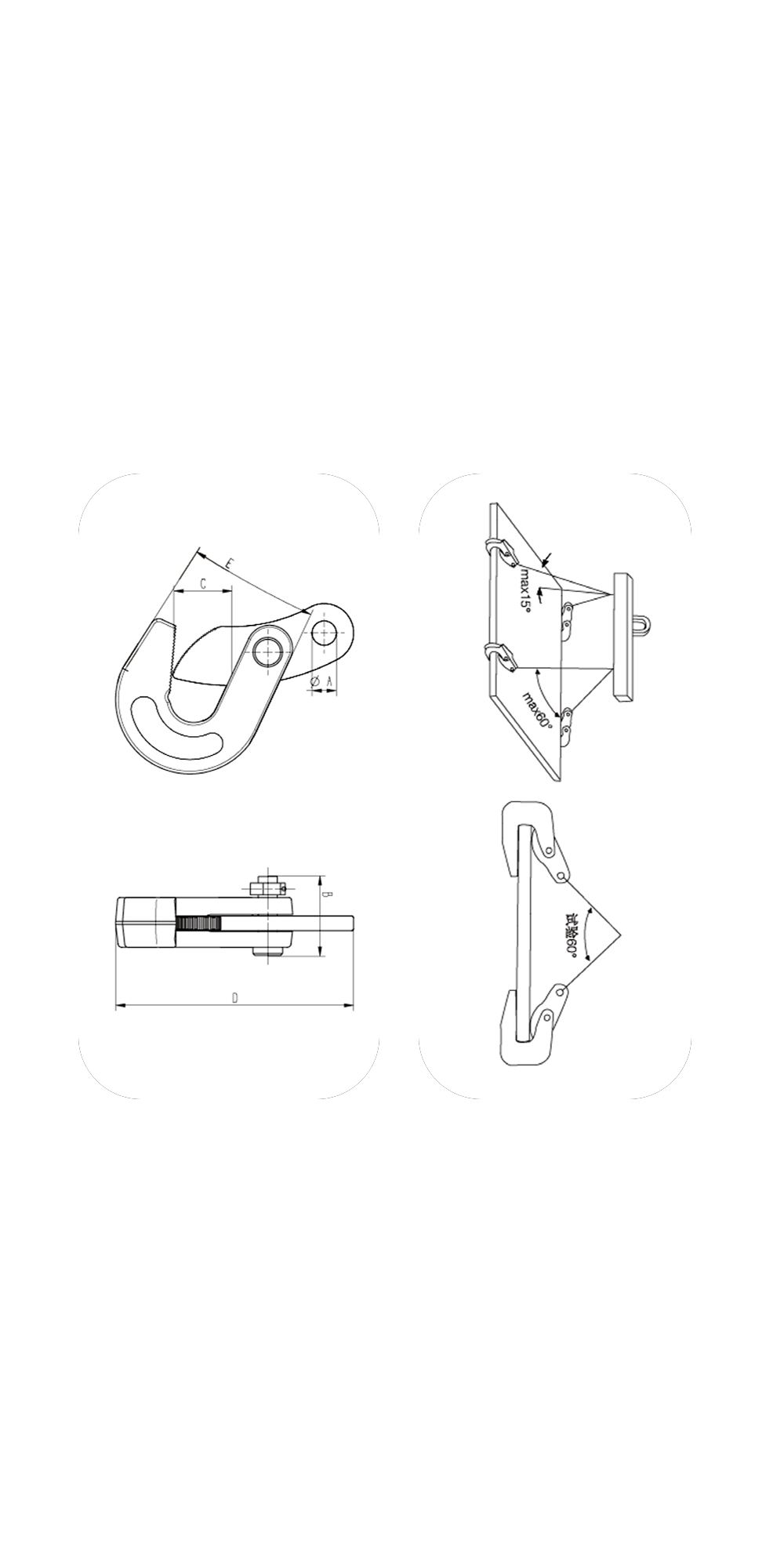

(DHQL)L型橫吊起重鉗
產(chǎn)品詳情
1.Application：Horizontal lifting of steel plate.
2.Material：Low carbon alloy steel or forging.
3.Loading range：0 to 5 ton.
4.Two pieces of clamp are used for the testing，but 2 pieces or 4 pieces are recommended for lifting operation，balance beam is needed for big size steel plate.
5.Tested load is 2 times of working load.
6.The loaded object shall not touch anything when operating，over loading is prohibited.
7.Durable enduring，easy operation.
產(chǎn)品介紹
