1.用途：適用于鋼板水平吊裝。
2.采用合金鋼鍛造，表面鍍鉻。
3.載荷范圍：0-5噸。
4.以單只試驗為額定載荷，吊裝作業時雙只或四只配套使用，水平吊裝時須加平衡梁。
5.吊裝過程中不得碰撞被吊物，嚴禁過載使用。
6.試驗載荷=額定載荷×2，破斷載荷≥工作載荷×5。
7.帶彈簧鎖無作業狀態下，鎖具自然加緊，吊上物體夾力呈比例增加。
8.強韌耐久，易操 作。
起重鉗|辰力吊索具
LIFTING CLAMPS|CHENLI RIGGING

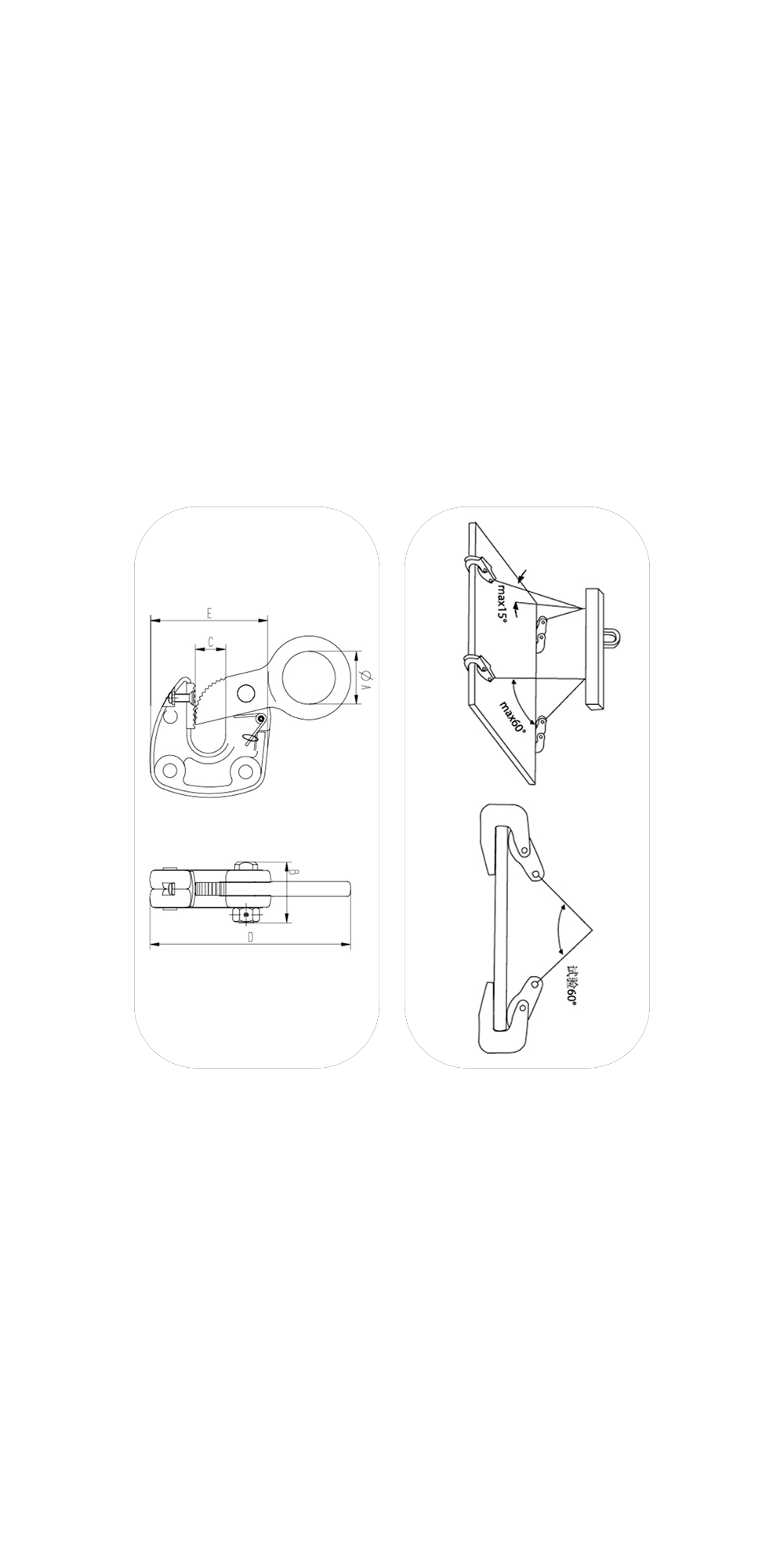

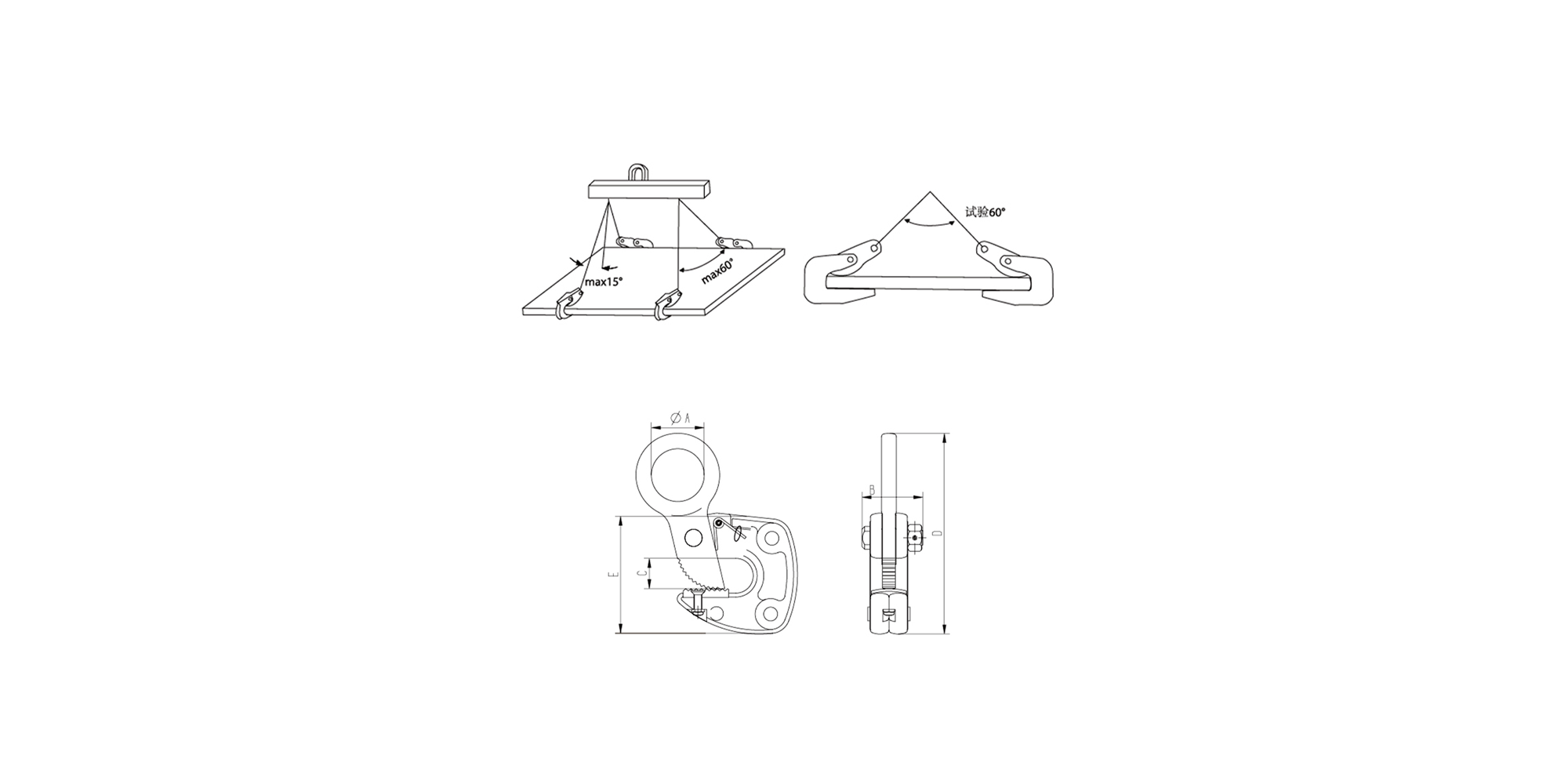

LC型橫吊起重鉗
產品詳情
1.Application：Horizontal lifting of steel plate.
2.The high-quality metal alloy steel precision forging，plate chrome.
3.Loading range：0-5ton.
4.One piece of clamp is used for the testing，and 2 pieces or 4 pieces are recommended for lifting operation，balance beam is needed for horizontal lifting.
5.The loaded object shall not touch anyting when operating，over loading is prohibited.
6.Tested load is 2 times of working load.Minimum breaking strength ≥5 times of working load.
7.With lock spring during the clamp non-work condition，locking device going in nature step-up，put the object in the clamp，the strength.
8.Becomes the proportion enhancement.
產品介紹
